16-Bit Arithmetic Logic Unit

ALUalusALU002Archived Feb 15, 2026

✅Tested & Functional

Authors:creeperdoesredstone

Endorsed by:mattbatwings

←→

1 / 2

View

The 16-bit ALU

A 16-bitDefinition: Guide to data storage sizes: **Bit**: The smallest unit of data, representing a 0 or a 1 in binary. Abbreviated as b **Nibble**: One hexadecimal 'digit,' representing either **4 bits** or the 16 ... ALU capable of performing 23 operations.

Input

2 16b numbers, 7 levers to control operation

Output

1 16b number

Speed

18 rt from input to output

Notes

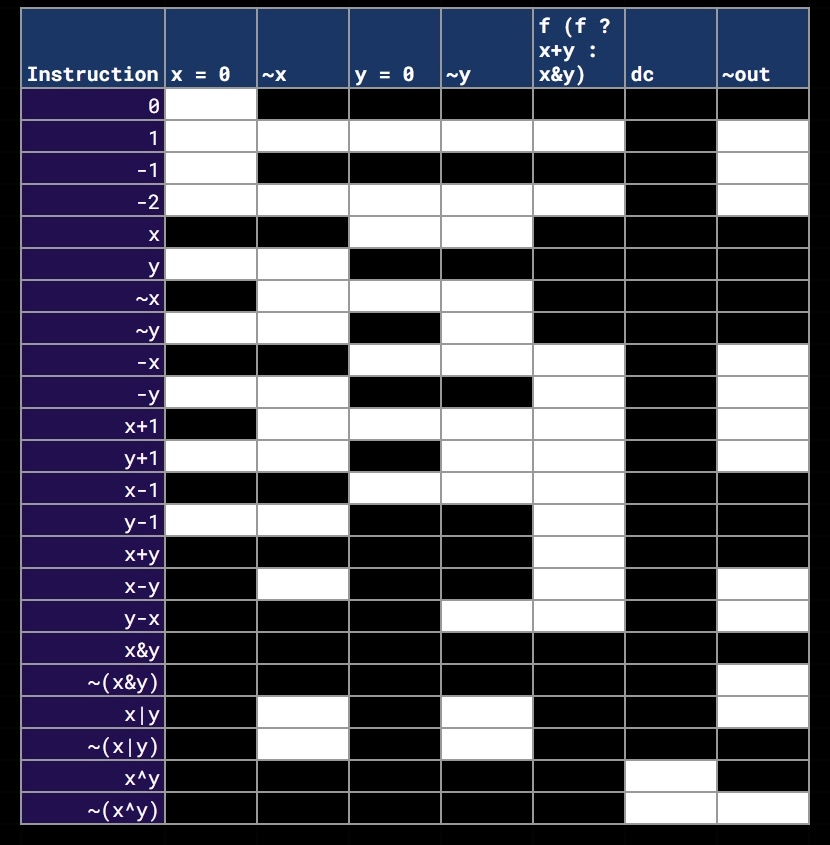

Refer to the attached table for the documented operations of this ALU. Feel free to mess around the ALU and find out, as you may discover undocumented operations that the ALU can perform.
