Decoder (horizontal to horizontal) (2 versions)

DECODEdecodersDECODE003Archived Feb 15, 2026

✅Tested & Functional⭐Recommended

Endorsed by:mattbatwings

View

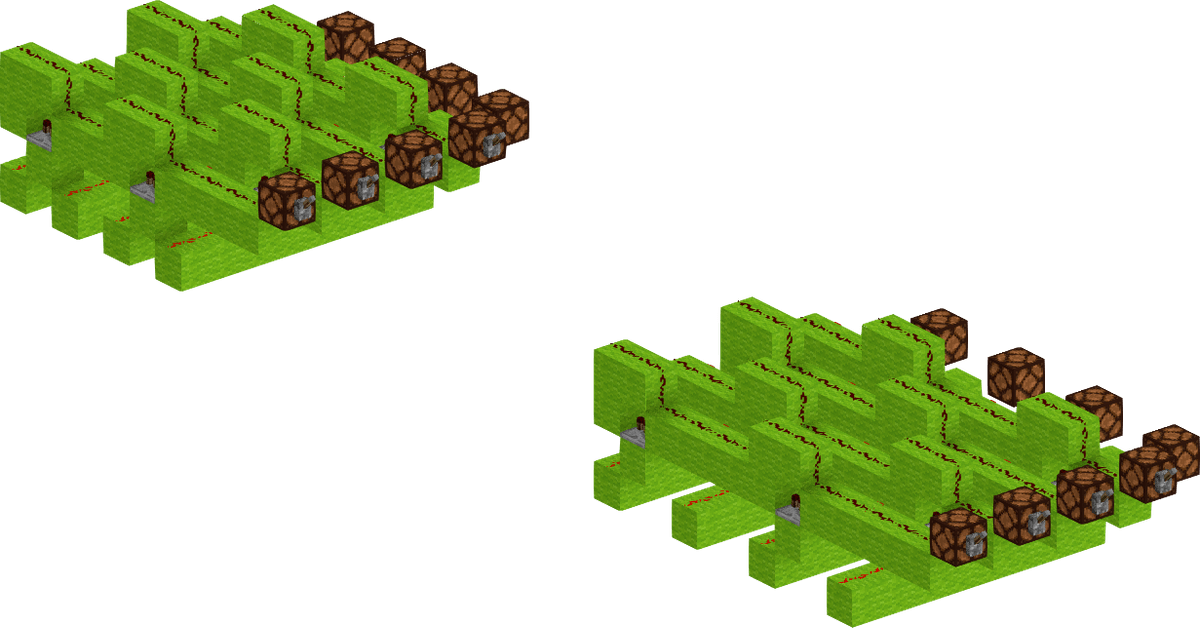

2 programable and expandable decoder designs.

Input

4b decoding

Output

4b one-hotDefinition: Refers to one bit of a binary string being active at a time. Examples: 00001000, 1000000, 000100 (if uniquely programmed)

Speed

2 tickDefinition: Different units of time used in Minecraft redstone. Normally, the game runs at 20 game ticks per second (this can be changed by lag or using the /tick command). Therefore, a **game tick is general...s

Notes

The 3 wide version is easily programmable, but the 2 wide version may cause you to get creative depending on the programming.
