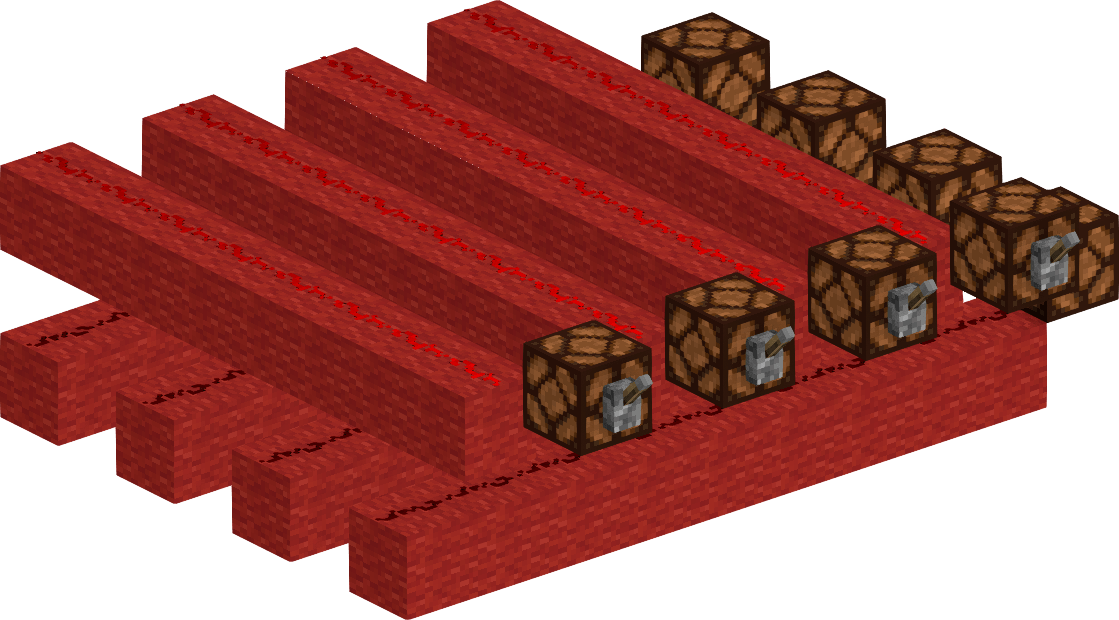

Encoder (horizontal to horizontal)

ENCODEencodersENCODE003Archived Feb 15, 2026

✅Tested & Functional⭐Recommended

Endorsed by:mattbatwings

View

A programable and expandable encoder design.

Input: 4b one-hotDefinition: Refers to one bit of a binary string being active at a time. Examples: 00001000, 1000000, 000100 Output: 4b encoding Speed: 2 tickDefinition: Different units of time used in Minecraft redstone. Normally, the game runs at 20 game ticks per second (this can be changed by lag or using the /tick command). Therefore, a **game tick is general...s

Input

4b one-hot

Output

4b encoding

Speed

2 ticks
