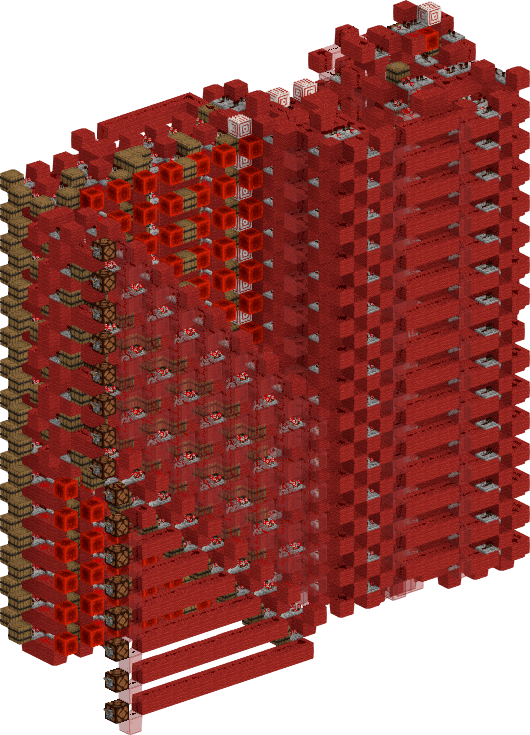

An 8 bitDefinition: Guide to data storage sizes: **Bit**: The smallest unit of data, representing a 0 or a 1 in binary. Abbreviated as b **Nibble**: One hexadecimal 'digit,' representing either **4 bits** or the 16 ...combinationalDefinition: No memory or state. The output is the result of the input alone. For example, an adder is combinational. For a given input, it will always produce the same output. multiplier with 16 bit output
Input
2 8 bit levers for A/B
Output
16 bits output
Speed
24 tickDefinition: Different units of time used in Minecraft redstone. Normally, the game runs at 20 game ticks per second (this can be changed by lag or using the /tick command). Therefore, a **game tick is general...s (pipelinedDefinition: The time it takes before a circuit is ready for another input. For example: If a circuit can accept a new input every 2 ticks, you may see this written as '2 tick pipelinable', or '5 hz' (5 per se... at 5Hz)
Notes
Uses Aminotreal's 16 bit 5Hz CCA, optimised for size
MixelAminotreal
mattbatwings
