8-bit Sequential Multiplier

MULTIPYmultipliersMULTIPY004Archived Feb 15, 2026

✅Tested & Functional⭐Recommended

Authors:mattbatwings

Endorsed by:mattbatwings

View

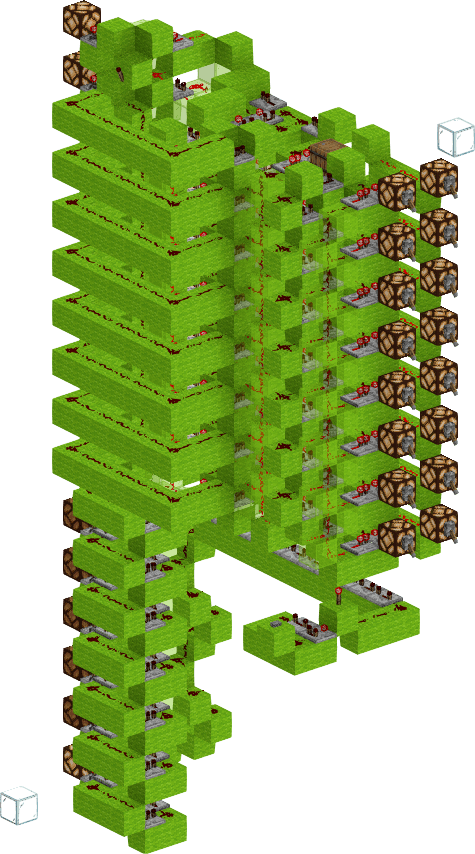

An 8-bitDefinition: Guide to data storage sizes: **Bit**: The smallest unit of data, representing a 0 or a 1 in binary. Abbreviated as b **Nibble**: One hexadecimal 'digit,' representing either **4 bits** or the 16 ... sequentialDefinition: Includes memory or state. The output is the result of the input AND a memory element. For example, a counter is sequential. When the 'count' input is pressed, the output depends on what is already ... multiplier.

Input

2 8b numbers, Start button

Output

16b product
