choose-n banking arbiter

OTHERCOMBother-combinationalOTHERCOMB008Archived Feb 15, 2026

✅Tested & Functional

Authors:RCS_33

Endorsed by:Waffle [Wueffi]

View

Description: chooses n true bitDefinition: Guide to data storage sizes: **Bit**: The smallest unit of data, representing a 0 or a 1 in binary. Abbreviated as b **Nibble**: One hexadecimal 'digit,' representing either **4 bits** or the 16 ...s out of a k-wide bit vector based on left/right sided priority. In Contrast to the normal arbiter, it does not guarantee to choose n bits, when at least n bits in the bit vector are set. But its way faster, so when its not that important, you will choose this over the arbiter most of the time

Input:

1. bit vector to choose from
2. bit vector to disable a choosing layer

Output: n bit vectors of length k with at most 1 set bit

Speed: (ceil of the fraction)

1. 1t per k/5 (wire delay)
2. 2t per n/4 (no base delay)

Size: x = 3-wide tileable per k z = 2-wide tileable per n y = 6 high

Use Cases:

• Same as normal arbiter, but faster when you don't care about precision

Notes:

1. since stackDefinition: LIFO: A data structure where the last input is outputted first (LIFO, Last in first out). For example, when the numbers 1, 2, 3, 4 are inputted in that order, they are outputted in the reverse ord...ing might be confusing, I marked the region to stack with gold blocks
2. the design is optimal in both speed and size. This is the 1st Iteration, but im pretty confident

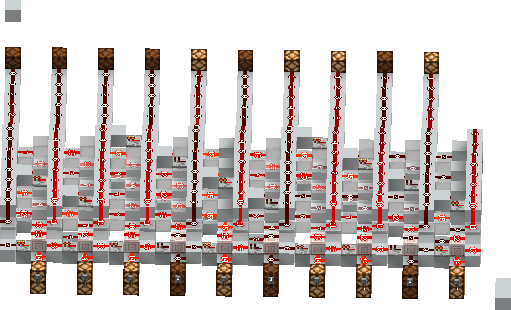

Schematic Content: n = 4 k = 10 (2 modules. Each module consists of 4 normal layers and 1 repeater layer)
